A series of links on the Unit Test and Code Coverage topics

http://geekswithblogs.net/jakob/archive/2009/06/03/tfs-team-build-2010-running-unit-tests.aspx

http://msmvps.com/blogs/rfennell/archive/2010/08/05/getting-code-coverage-working-on-team-build-2010.aspx

Server Centric statistics : IIS Log

Here is one the the many free tools to analyse IIS Logs :

• Indihiang 1.0 (x86) - Web Log Analyzer

Quite good for a free tool that help us start on analysing IIS Logs

Shows all the HTTP status

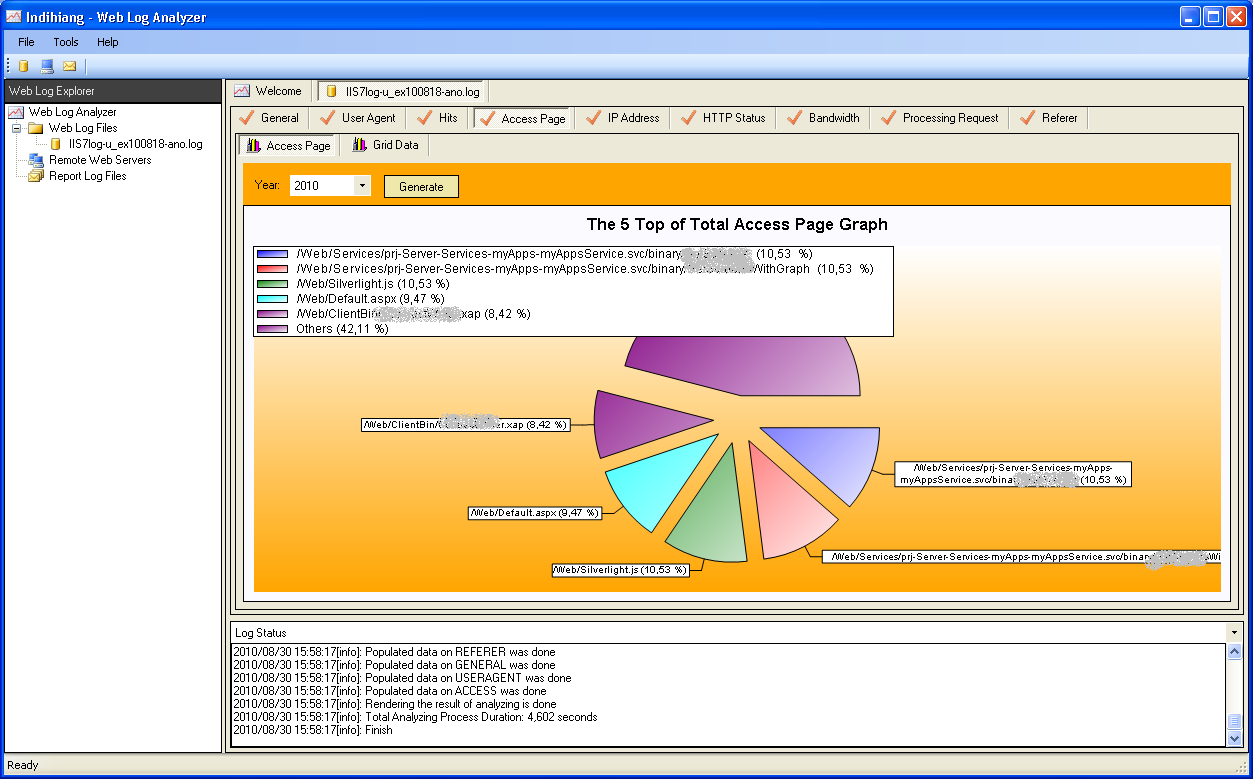

Access of the various pages (also notice the Silverlight *.XAP)

The time required to request the pages

TOP 10 SCRUM Advantages

Obviously, I will not state that SCRUM is 100% the best of the best project management ever. It obviously hides some drawbacks. However, because the advantages are so numerous, the overcome is really good. I would like to emphasis only 10 of them.

Bear in mind that if you ask 100 persons a top-10 list, you will have 100 answers; furthermore, ask me to perform this exercise in a few weeks time, my list will surely be different!

1. Freedom of the team, since the team works without any bosses. As a result, the team has to be very responsible and work tightly together to solve problems in a challenging environment. The only limit to the freedom is the User Stories to implement at the end of the sprint, and the sprint’s objective to reach,

2. KISS - “Keep It Simple Stupid! ”: Scrum rules are simple to understand. You don’t necessarily have to study and understand why it works, just follow the rules! Obviously, it is best to study project management theories and leadership concepts either to apply the rules with even more convictions, or to go beyond them once mastered. In theory (I don’t fully agree on that point), any decisions is done on a KISS bases,

3. The capacity to improve ourselves with retrospective and brainstorming sessions. This allows us to state and agree that we are bad in such or such area, then take actions to change completely one or more processes. Any process belongs to the team, and it is its duty to improve or suppress it. No boss knows better the problem that the extended team (i.e. including the PO, the SM and the Team),

4. I have done a few projects in AGILE, but what I find excellent with SCRUM is that it provides a worldwide proven project management pattern. Moreover, the best practices are basic enough to allow us: To apply them strictly, AND to add creativity so that it could be applicable to solve various problems,

5. My aim is not to list all SCRUM’s definition, but if I had to pick up 2 great stuff in it would be : Rely on Time box nearly everywhere: In many occasions on an AGILE project (without SCRUM), when everything is important, some tasks are endless and we tried to cheet our deadlines, and add a bit more, and another team member a wee bit more, and so on. As a result, we resulted in the very well-known issue, that everyone knows : we were late, and the quality was bad !! By applying Timebox most of the time AND defining the rules beforehand with the entire team member ("definition of Done"), it is easier to stop it due timescale. As long as the ScrumMaster plays its role of leader so that the rules are applied.

6. I just knew AGILE before starting a project with SCRUM. What I was really astonished by is its ability to predict the future, based on our previous sprints' experience!! Obviously, no rule is perfect and it is only estimations, but we managed to have a 6 months plan for instance, and identified risks. For example, a “Release Burnup chart” is simple, but it enables us to take important decisions few months in advance, and inform the project board and sponsors well ahead.

7. It is a humble project management: no bosses, no experts, beginners are welcome. Personally, I found that later point bizarre and I doubted it on that point before trying it, then changed my mind. In fact, in our SCRUM project  generated so much motivation and “helpfulness” that “beginner” and “experts” could work in harmony with efficiency. In addition, holidays or the turnover within our team was less a catastrophy due to the sharing of the information (eg. pair programming).

8. The team is “self-organized” hence many decisions and tasks could be done in parallel: well, in fact, don’t forget that the ScrumMaster is here to lead the way, and although he do give any orders, a good leadership could indirectly tell what to do!

9. I was surprised that, on quite a big project, our team was able to work properly with such a few emails sent!! In fact, we found out that most of our communication is done orally.

   . emails are used when a fair amount of information has to be communicated and when a quick answer was required. In this case, those emails were followed by oral communication anyway. This is particularly true when you could have email server problems: Once, I found out only after 5 days that my inbox email were down, because on one hand we were often and on the other hand because my outbox email still worked.

   . Documents in a common repository (such as Sharepoint) are used when large documents are to be shared. Never send those documents by email, just its link.
10. Last but not least, we are just happy to work in such a friendly conditions, as long as retrospectives/feedbacks sessions are performed when something goes wrong!

Just to illustrate that it is not only a dream methodology, I can quote one of the major drawback: the fact that it is difficult for us to always find a tradeoff between quality and the time boxed delivery. That is to say, we were able to deliver on time, but the quality of the product is not as great as what I would have expected!!


Another major drawback, is that the tester is always required to catch us up and rewrite its GUI tests, so that the Software Factory is useful. As opposed to the ideal world where you write only one big GUI test according a detailed specification document (that would always change anyway in the real world !).


The good news is that, because the customer and the sponsor where strongly involved in the product's creation and could play with it, they were “sort of!!” happy to grant us more budget to perform some extra-iterations.

Command line : Combine old style deployment with TFS 2010

Here is an old style batch command line (remember thoses days with MS-DOS 6).
We can still combine a batch with the brand TFS2010 and Silverlight:

Note: Introduced in SQL 2005, you could use the command sqlcmd insead of osql used below (osql is older).

@ECHO OFF

CLS

rem Check if the parameter %1 allows the access to the proper folder

DIR \\myTFSBuildServer\TFSDropBuild\GC-in\%1\_PublishedWebsites\myProject.Server.Web\*.*

CLS

IF %ERRORLEVEL% == 1 GOTO GatedCheckInVersionNotSpecified

rem -------------------------------------------------------

rem         RUNS ALL SILVERLIGHT UNIT TESTS

rem -------------------------------------------------------

-- ECHO Running the Silverlight Unit Tests on your machine before the deployment

CD ..\Tests\UnitTests

      -- ECHO SILVERLIGHT UNIT TEST NUMBER 1

       CD ..\..\..\Projects\Tests\UnitTests\myProject.Client.Tests

       C:\WINDOWS\Microsoft.NET\Framework\v4.0.30319\msbuild /t:test

       CD ..\..\Deployment

rem -------------------------------------------------------

rem         CHECK IF ALL SILVERLIGHT UNIT TESTS PASSED

rem -------------------------------------------------------

CHOICE /C:YN Did all the Silverlight UnitTests passed

IF ERRORLEVEL==2 GOTO SilverlightUTfailed rem n (no)

IF ERRORLEVEL==1 GOTO SilverlightUTpassed rem y (yes)

:SilverlightUTpassed rem We can deploy

CLS

ECHO -----------------------------------------------------------

ECHO         START : DEPLOYMENT of the Database and the C# code

ECHO -----------------------------------------------------------

ECHO 1. Drops ALL TABLES of myProject for the SQL instance of the TFS integration serveur

rem On détruit toutes les tables de myProject sur l'instance SQL pour le serveur d'intégration TFS

osql -U myUserLogin -P myPassword -S MY_SQL_SERVER\MY_SQL_INSTANCE -i ..\SQL\Drop_ALL_Tables_of_myProject.sql

CLS

osql -U myUserLogin -P myPassword -S MY_SQL_SERVER\MY_SQL_INSTANCE -i ..\SQL\Drop_ALL_Tables_of_myProject.sql

PAUSE

ECHO 2. CREATION OF THE EMPTY STRUCTURE

osql -U myUserLogin -P myPassword -S MY_SQL_SERVER\MY_SQL_INSTANCE -i ..\..\Projects\Sql\myEntityFrameworkThing.edmx.sql

rem -Q "ALTER DATABASE myProject SET ANSI_NULL_DEFAULT ON"

CLS

ECHO DONE : CREATION OF THE EMPTY STRUCTURE

PAUSE

ECHO 3. CREATION OF THE DATABASE STRUCTURE AND THE DATA

rem ~ ~ ~ ~ ~ ~ ~ ~  W A R N I N G   A T T E N T I O N  ~ ~ ~ ~ ~ ~ ~ ~

rem ~ in order not to have the accent's bug, you have to "save as" the script below in Notepad

rem ~ and change the encoding to "unicode"

osql -U myUserLogin -P myPassword -S MY_SQL_SERVER\MY_SQL_INSTANCE -Q "USE [myProject]"

osql -U myUserLogin -P myPassword -S MY_SQL_SERVER\MY_SQL_INSTANCE -i ..\SQL\ProductManager.Populate.Parcours.sql -o LogPopulate.txt

osql -U myUserLogin -P myPassword -S MY_SQL_SERVER\MY_SQL_INSTANCE -i ..\SQL\Insert_Blocs_Labels.sql -o LogPopulateBlocsLabels.txt

rem 4. (Hack - Waiting for myProject Product Designer) Temporarily remove the Name of ALL SCREENS so that they becomes a template

rem because a template has no name

osql -U myUserLogin -P myPassword -S MY_SQL_SERVER\MY_SQL_INSTANCE -Q "UPDATE Screens SET Name=NULL"

rem 5. If required, call a SCRIPT to ATTACH extra BEHAVIORS on the screen

ECHO 6. DEPLOY the code and the binaries, and create a log file containing the name of the deployed version

CLS

ECHO BACKUP of the previous version

set T=%time:~0,5%

SET backupDir=\\myTFSBuildServer\myFolder\Backups\%1.%T::=-%

ECHO The backup folder is "%backupDir%".

MD %backupDir%

PAUSE

XCOPY  \\myTFSBuildServer\myFolder\Web\*.* %backupDir% /E

PAUSE

ECHO 6. DEPLOY the code and the binaries, and create a log file containing the name of the deployed version

ECHO    (except the list of files in FilesToIgnore.txt such as web.Config)

XCOPY  \\myTFSBuildServer\TFSDropBuild\GC-in\%1\_PublishedWebsites\myProject.Server.Web\*.* \\myTFSBuildServer\myFolder\Web /E /W /Y /EXCLUDE:FilesToIgnore.txt

rem Gets the Zip file so that it can be extracted below

COPY  \\myTFSBuildServer\TFSDropBuild\GC-in\%1\_PublishedWebsites\myProject.Server.Web\ClientBin\myProject.xap myProject_Log.zip

rem COPY  the TRACE file and unzip the ServiceReferences.ClientConfig file from myProject.xap

COPY  \\myTFSBuildServer\TFSDropBuild\GC-in\%1\_PublishedWebsites\myProject.Server.Services.WebProbe\Trace\WebProbe.aspx \\myTFSBuildServer\myFolder\Web\Trace\

PKUNZIP myProject_Log.zip ServiceReferences.ClientConfig

rem Due to the fact that PkZip is old, we have to rename the extracted file

REN SERVICER.CLI ServiceReferences.ClientConfig

COPY  ServiceReferences.ClientConfig \\myTFSBuildServer\myFolder\Web\Trace

ECHO  This file is auto-generated by the deployed gated checkin.> DeployedVersion_%1.log

COPY  DeployedVersion_%1.log \\myTFSBuildServer\myFolder\Web\Trace

rem Clean up the mess

DEL myProject_Log.zip

DEL ServiceReferences.ClientConfig

PAUSE

rem END of the deployment, we can quit

ECHO -----------------------------------------------------------

ECHO         END : DEPLOYMENT of the Database and the C# code

ECHO READY to use

ECHO http://myServer/myFolder/Web/StaticDemo_Accueil.aspx

ECHO -----------------------------------------------------------

GOTO END

:SilverlightUTfailed  rem AN ERROR occured and at least one Silverlight Unit Test FAILED

CLS

ECHO -----------------------------------------------------------

ECHO Silverlight Unit Test FAILED :

ECHO You are NOT allowed to deploy on the myFolder server

ECHO Please correct the error, check-in and try again.

ECHO -----------------------------------------------------------

GOTO END

:GatedCheckInVersionNotSpecified

CLS

ECHO -----------------------------------------------------------

ECHO Please specify the name of the gated check-in to deploy

ECHO for example :

ECHO Only_for_the_CSharpTeam_DeployInto_myFolder.bat GC-in_20000429.12

ECHO OR the folder

ECHO \\myTFSBuildServer\TFSDropBuild\GC-in\%1\_PublishedWebsites\myProject.Server.Web\

ECHO does not exists

ECHO -----------------------------------------------------------

GOTO END

:END

Activating and configuring SQL server 2008 FileStream

I have been using this feature for a while, but apparently a bug due to a Windows Update appeared, making this taks quite difficule.

I wanted to post my exact SCRIPT T-sql that worked fine (issued from a copy/paste, so no possible typo error - may be a HTML conversion can occur).

Here you go :
------

-- OBJECT Enable and Configure Filstream

-- AUTHOR : Vincent THAVONEKHAM, according to the MSDN post below
-- DATE : 2010.08.15
-- Docs :
-- Reference MSDN (Published: October 2008) :
http://msdn.microsoft.com/en-us/library/cc949109(SQL.100).aspx
--
-- Prerequisites : . Destroy any previous [documentsFileStream]
Database to run this script
-- . Add the AD accout NETWORK SERVICE with all access to the folder
-- D:\Program Files (x86)\Microsoft SQL Server\MSSQL10.MSSQLSERVER\MSSQL

USE [master]

GO

-- Set the filestream_access_level configuration option

-- 0 – disable FILESTREAM support for this instance
-- 1 – enable FILESTREAM for Transact-SQL access only
-- 2 – enable FILESTREAM for Transact-SQL and Win32 streaming
access

-- (Transact-SQL and Win32 streaming access is
Enabled)

EXEC
sp_configure filestream_access_level,
2;

GO

RECONFIGURE;

GO

PRINT '==> SQL 2008 SHOULD REPLY :'

PRINT '==> L''option de configuration ''filestream
access level'' est passée de 2 à 2. Pour installer, exécutez l''instruction
RECONFIGURE.'

-- CREATION OF THE DATABASE FOR THE FILESTREAM

CREATE
DATABASE [documentsFileStream]
ON PRIMARY

( NAME = N'documentsFileStream',
FILENAME = N'D:\Program Files (x86)\Microsoft SQL
Server\MSSQL10.MSSQLSERVER\MSSQL\DATA\documentsFileStream.mdf',

SIZE
= 3072KB , FILEGROWTH = 1024KB )

LOG ON

( NAME = N'documentsFileStream_log',
FILENAME = N'D:\Program Files (x86)\Microsoft SQL
Server\MSSQL10.MSSQLSERVER\MSSQL\DATA\documentsFileStream_log.ldf',

SIZE= 1024KB , FILEGROWTH = 10%)

GO

ALTER
DATABASE [documentsFileStream]
SET COMPATIBILITY_LEVEL = 100

GO

ALTER
DATABASE [documentsFileStream]
SET ANSI_NULL_DEFAULT
OFF

GO

ALTER
DATABASE [documentsFileStream]
SET ANSI_NULLS OFF

GO

ALTER
DATABASE [documentsFileStream]
SET ANSI_PADDING
OFF

GO

ALTER
DATABASE [documentsFileStream]
SET ANSI_WARNINGS OFF

GO

ALTER
DATABASE [documentsFileStream]
SET ARITHABORT OFF

GO

ALTER
DATABASE [documentsFileStream]
SET AUTO_CLOSE OFF

GO

ALTER
DATABASE [documentsFileStream]
SET AUTO_CREATE_STATISTICS ON

GO

ALTER
DATABASE [documentsFileStream]
SET AUTO_SHRINK OFF

GO

ALTER
DATABASE [documentsFileStream]
SET AUTO_UPDATE_STATISTICS ON

GO

ALTER
DATABASE [documentsFileStream]
SET CURSOR_CLOSE_ON_COMMIT OFF

GO

ALTER
DATABASE [documentsFileStream]
SET CURSOR_DEFAULT  GLOBAL

GO

ALTER
DATABASE [documentsFileStream]
SET CONCAT_NULL_YIELDS_NULL OFF

GO

ALTER
DATABASE [documentsFileStream]
SET NUMERIC_ROUNDABORT OFF

GO

ALTER
DATABASE [documentsFileStream]
SET QUOTED_IDENTIFIER OFF

GO

ALTER
DATABASE [documentsFileStream]
SET RECURSIVE_TRIGGERS OFF

GO

ALTER
DATABASE [documentsFileStream]
SET DISABLE_BROKER

GO

ALTER
DATABASE [documentsFileStream]
SET AUTO_UPDATE_STATISTICS_ASYNC OFF

GO

ALTER
DATABASE [documentsFileStream]
SET DATE_CORRELATION_OPTIMIZATION OFF

GO

ALTER
DATABASE [documentsFileStream]
SET PARAMETERIZATION SIMPLE

GO

ALTER
DATABASE [documentsFileStream]
SET READ_WRITE

GO

ALTER
DATABASE [documentsFileStream]
SET RECOVERY FULL

GO

ALTER
DATABASE [documentsFileStream]
SET MULTI_USER

GO

ALTER
DATABASE [documentsFileStream]
SET PAGE_VERIFY CHECKSUM

GO

USE [documentsFileStream]

GO

IF NOT EXISTS (SELECT name FROM sys.filegroups WHERE is_default=1 AND name = N'PRIMARY') ALTER DATABASE [documentsFileStream] MODIFY
FILEGROUP [PRIMARY]
DEFAULT

GO

PRINT '==> SQL 2008 SHOULD REPLY NOTHING; just the the query ran successfully'

-- ADD THE FILESTREAM PART : Create the FileGroup for FileStream

USE [documentsFileStream]

GO

ALTER
DATABASE [documentsFileStream]
ADD FILEGROUP FileStreamGroup1 CONTAINS FILESTREAM;

GO

PRINT
'==> SQL 2008 SHOULD REPLY NOTHING; just the the query ran successfully'

-- Specify pathname of the directory that will be the root of the data container

-- NOTE: On your harddrive, DO NOT create the final folder FSDATA

-- SQL srv will automatically create it with the command below
-- Reminder : The folder D:\Program Files (x86)\Microsoft SQL
Server\MSSQL10.MSSQLSERVER\MSSQL
-- MUST have the AD account 'NETWORK SERVICE' with full access
-- else you will have the error:

-- CREATE FILE a rencontré l'erreur du système
d'exploitation 5(failed to retrieve text for this error. Reason: 15100) en
essayant d'ouvrir ou de créer le fichier physique 'D:\Program Files
(x86)\Microsoft SQL Server\MSSQL10.MSSQLSERVER\MSSQL\FSDATA'.

USE [documentsFileStream]

GO

ALTER
DATABASE [documentsFileStream]
ADD FILE (

NAME = FSGroup1File,
FILENAME = 'D:\Program Files (x86)\Microsoft SQL Server\MSSQL10.MSSQLSERVER\MSSQL\FSDATA')
TO FILEGROUP FileStreamGroup1;
GO

PRINT
'==> SQL 2008 SHOULD REPLY NOTHING; just the the query ran successfully'

-- The following query is just to ensure everything went OK on the creation
-- of the file group storage called FILESTREAM_GRP.

USE [documentsFileStream];

GO

SELECT

m.file_id,
m.type_desc,
g.name AS [filegroup_name],
m.name AS [file_name],
m.physical_name
FROM
sys.master_files m
INNER
JOIN sys.filegroups g
ON m.data_space_id = g.data_space_id
WHERE
database_id = DB_ID();
GO

PRINT
'==> SQL 2008 SHOULD show you 2 rows (at least). Check the T-SQL comments for more info'

-- YOU SHOULD HAVE 2 ROWS, such as :
-- 1 ROWS PRIMARY documentsFileStream D:\Program Files
(x86)\Microsoft SQL Server\MSSQL10.MSSQLSERVER\MSSQL\DATA\documentsFileStream.mdf
-- 65537 FILESTREAM FileStreamGroup1 FSGroup1File D:\Program
Files (x86)\Microsoft SQL Server\MSSQL10.MSSQLSERVER\MSSQL\FSDATA
--
-- moreover
--
-- in the folder D:\Program Files (x86)\Microsoft SQL
Server\MSSQL10.MSSQLSERVER\MSSQL\FSDATA
-- you should have (if you have the right to see them), the
following folder and file respectively :
-- $FSLOG
-- filestream.hdr
